From interest to a usable ticket
Browsing and cart state remain lightweight until checkout, when inventory becomes a transactional concern.
Browse→Cart→Checkout→Ticket
← Work
Platform Engineering · Event Ticketing
Ticket Trove Africa
An East African event platform spanning public discovery, checkout-time ticket reservation, organizer operations, ticket issuance, transfer, and entry validation.
Product surface
One product, two operating surfaces.
The attendee side needs fast event discovery and a dependable checkout and ticket experience. The organizer side needs control over events, inventory, promos, holds, and operational state. Both depend on the same transaction model underneath.
- Attendeediscover · cart · checkout · tickets
- Organizercreate · publish · tickets · promo · holds
- Platformreservation · order · issuance · validation
System model
Ticketing is a concurrency problem disguised as checkout.
The system has to preserve buyer intent without overselling organizer inventory. That means cart state, reservations, orders, issued tickets, and entry scans cannot be treated as unrelated screens or CRUD records.
Three connected lanes
Intent, inventory, and operations move together.
Each lane has different UX concerns, but the platform has to keep all three aligned around the same event and order state.
Protect the authoritative sale state
Redis locks, PostgreSQL transactions, order state, and ticket validation boundaries protect the same inventory from races.
Reserve→Order→Issue→Validate
Control the event after publish
Organizer tooling covers event lifecycle, ticket types, pricing, promotional rules, holds, and event-level operational metrics.
Create→Publish→Control→Operate
Checkout & inventory
Reserve late. Finalize once. Release safely.
The platform deliberately does not reserve inventory when a buyer adds a ticket to the cart. Reservation begins at checkout, where intent is strong enough to justify temporarily removing capacity from other buyers.
Order lifecycle
Checkout becomes a controlled state transition.
Redis locking and database transactions protect inventory and order state while the checkout flow moves toward completion or release.
Cart
Buyer intent only; inventory is not reserved yet.
Reserve
Checkout reserves ticket capacity for the pending order.
Order
Create the pending sale with customer and ticket context.
Finalize
Complete or cancel the order through one authoritative transition.
Issue
Create ticket records only after the order reaches the completed state.
Delivery
Queue ticket PDFs and buyer notifications after completion.
Expired / cancelled order → release inventory → return capacity to sale
Frontend architecture
The browser surface is built for regional product requirements.
The frontend uses Next.js 16 with localized routes, explicit server-state and client-state boundaries, strict form validation, performance work, and an installable PWA foundation.
Frontend stack
Product concerns have dedicated boundaries.
React Hook Form and Zod handle form contracts alongside these broader application boundaries.
Application shell
App Router, localized routes, public product surfaces, protected organizer routes, and SEO.
Regional language
English and Kiswahili routing are part of the application model rather than a later translation layer.
State separation
TanStack Query owns server state while Zustand handles focused client-side state.
PWA readiness
Manifest and service-worker tooling establish an installable, offline-aware browser foundation.
Backend architecture
A modular monolith with explicit transactional boundaries.
The Fastify backend is intentionally a single deployable application, but domain modules keep authentication, event management, organizations, ticketing, and background jobs from collapsing into one undifferentiated service layer.
Authentication
JWT access/refresh flows, verification paths, permission rules, rate limiting, and security-oriented Fastify plugins.
Events
Event lifecycle, public discovery, organizer editing, ticket types, pricing, promo codes, holds, and event-level metrics.
Organizations
Organizer ownership and membership boundaries keep operational access scoped to the correct organization.
Ticketing
Cart, checkout reservation, orders, inventory, ticket records, dynamic QR validation, entry OTPs, scan logs, and transfers.
Delivery & jobs
BullMQ-backed work queues separate ticket PDF generation and buyer notifications from synchronous request handling.
Ticket integrity
The ticket stays stateful after purchase.
Issuing a QR image is not the end of the security model. Entry validation combines short-lived QR data, a separate entry factor, concurrency protection, and scan history so the system can distinguish a valid ticket from an expired, duplicated, or wrong-event attempt.
Entry controls
Validation is treated as another transactional boundary.
The same ticket can also move between people through an explicit transfer lifecycle rather than silently editing ownership data.

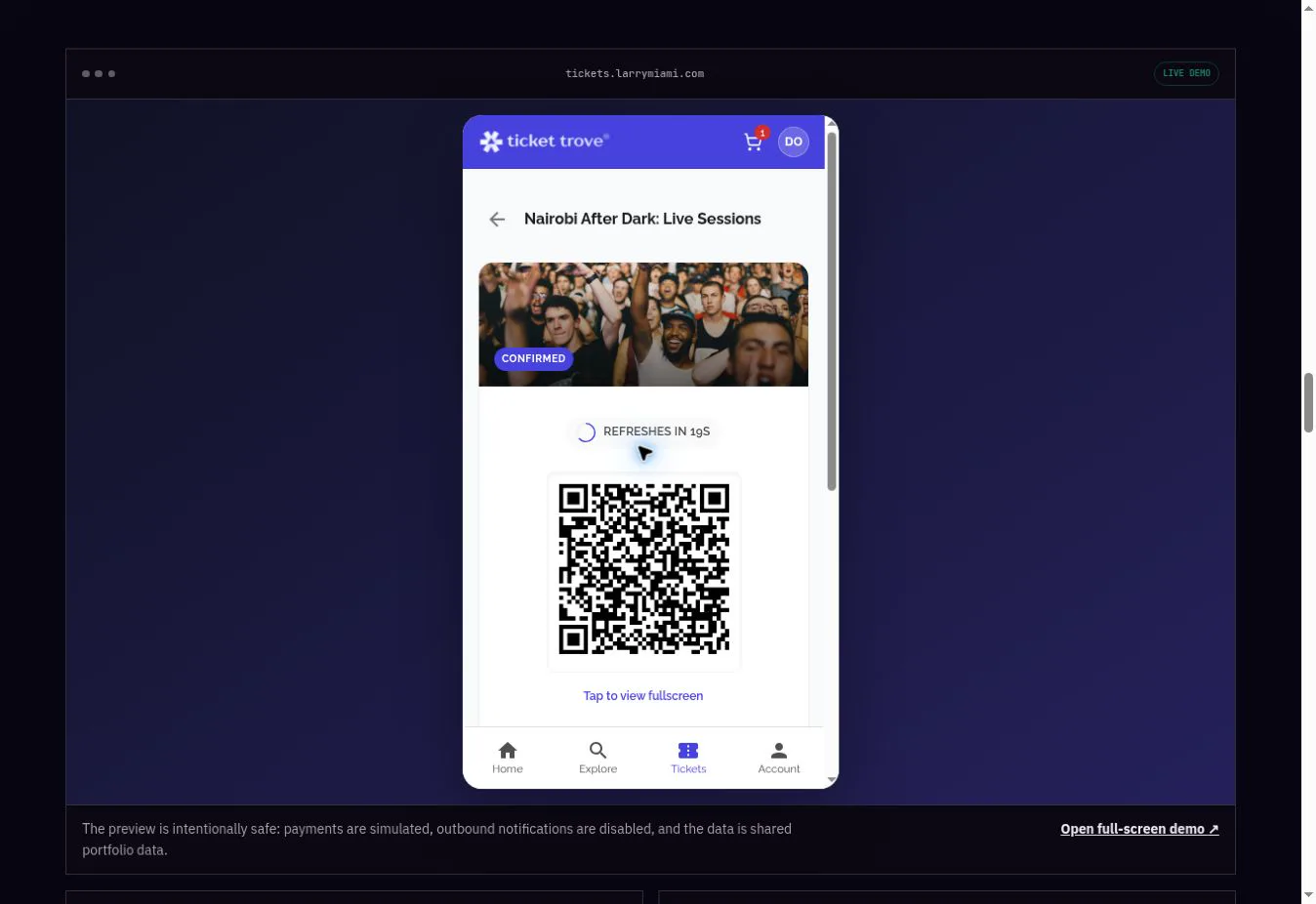

30-second TOTP window
Ticket UUID, short-lived TOTP data, and timestamp rotate the scannable payload.
Separate expiring factor
A hashed entry OTP has its own expiry and must validate alongside the ticket QR state.
Duplicate-aware validation
Rate limits, Redis locking, ticket state checks, and scan logs protect concurrent entry attempts.
Ownership changes are explicit
Claim tokens, transfer limits, cancellation, history, and guest/authenticated claiming preserve provenance.
Delivery & operations
Deployment is part of the system design.
The backend repository carries its operational path with the code: integration-service dependencies in CI, container builds, staged deployment, migration preflight, health checks, and a production backup gate.
Delivery path
Build, verify, migrate, deploy, observe.
Security scans are present as visibility controls; the current npm audit and optional Snyk steps are non-blocking rather than being described as hard release gates.
Test against dependencies
PostgreSQL 16 and Redis 7 service containers support lint, type checks, tests, and build verification.
Package once
GitHub Actions builds the application image and publishes deployment artifacts to GitHub Container Registry.
Migrate before deploy
Migration preflight, database migration, container recreation, and local/public health checks run in deployment.
Backup + manual approval
The production path is manually dispatched and creates a database backup before migration and deployment.
Engineering evidence
The implementation boundary is explicit.
The implementation repositories are private. This case study exposes the architecture, transaction model, security boundaries, and delivery controls without publishing proprietary source code.
Product application
Next.js 16 App Router, English/Kiswahili routes, public event/cart/ checkout/ticket surfaces, organizer dashboard routes, PWA tooling, and the live Ticket Trove product.
Transactional ticketing code
Fastify modules, checkout-time reservation, Redis locks, atomic order completion/cancellation, ticket validation, transfer workflows, background jobs, and PostgreSQL migrations.
CI/CD and operational controls
Test dependencies, Docker builds, GHCR delivery, deployment migrations, health checks, failure alerts, Sentry integration, and the production backup step are represented in repository workflows.
Evidence boundary
Implemented code is not the same as every roadmap target being achieved.
The case study intentionally avoids presenting planning targets or incomplete surfaces as shipped proof.
- The dedicated organizer analytics tab is still marked “Coming Soon”; event-level metrics already exist elsewhere in the dashboard.
- Roadmap load and scale targets are goals, not claimed benchmark results.
- The implementation repositories are private; this page exposes architecture and engineering decisions without publishing proprietary source.
Ticket Trove Africa
Regional product requirements shape platform design.
Inventory concurrency, mobile entry, language, connectivity, and organizer operations all influence the architecture.
